Technische Daten
| Pumpentyp | SP18 |
| Anzahl Stufen | 1 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Frequenz (Hz) | 50 Hz |
| Max. Medientemp. (°C) | 60 °C |
| Min. Medientemp. (°C) | -15 °C |
| Max. Betriebsdruck | 60 bar |
| Rohranschluss | Rp |
| Anschlussgröße | 2 1/2 inch |
| Laufradwerkstoff | Stainless steel |
| Bruttogewicht | 7.3 kg |
| Nettogewicht | 4.7 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO,MOROCCO |
| EAN-Code | 5715121944045 |

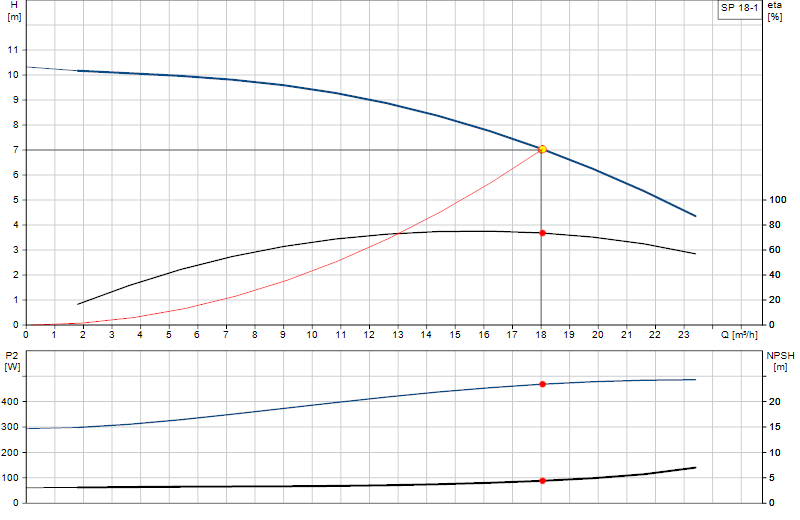

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
