Technische Daten
| Pumpentyp | SP14 |
| Anzahl Stufen | 31 |
| Mindesteffizienzindex (MEI) | 0.50 |
| Phasen | 3 |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | -15 °C |
| Max. Betriebsdruck | 60 bar |
| Rohranschluss | Rp |
| Anschlussgröße | 2 inch |
| Laufradwerkstoff | Stainless steel |
| Bruttogewicht | 106 kg |
| Nettogewicht | 60.2 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO,MOROCCO |
| Motornummer | 7C193712 |
| EAN-Code | 5712603262574 |

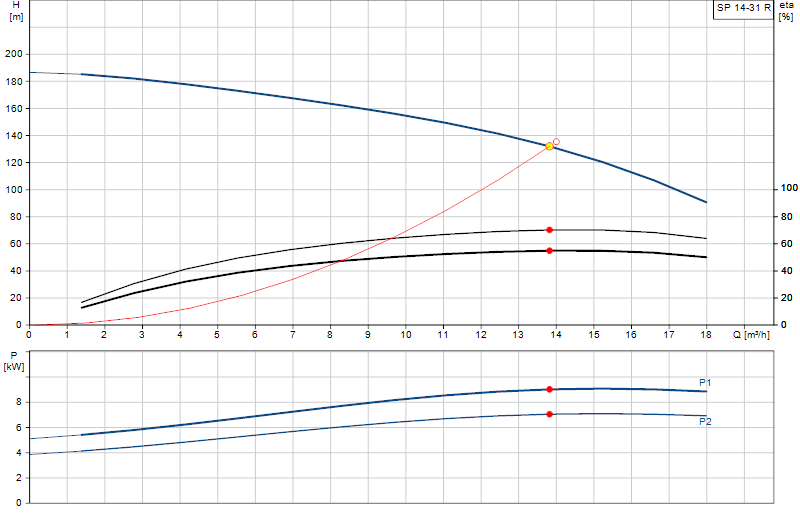

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
