Technische Daten
| Max. Förderhöhe (m) | 26 m |
| Phasen | 3 |
| Nennspannung | 380-415/660-690 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | H |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 10 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 8 bar |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Bruttogewicht | 361 kg |
| Nettogewicht | 333 kg |
| Zulassungen | CE,EAC,RCM |
| EAN-Code | 5713834109751 |

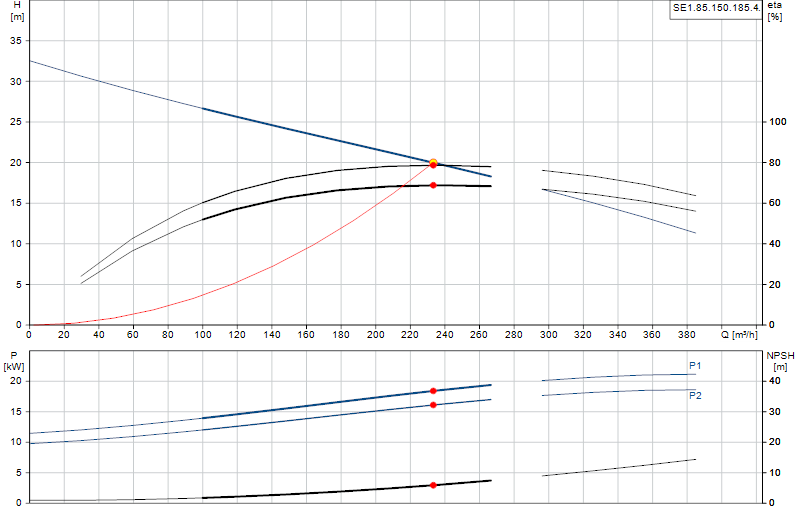

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
