Technische Daten
| Pumpentyp | NKG |
| Nennförderstrom (m³/h) | 553.8 m³/h |
| Nennförderhöhe (m) | 52.37 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 110 kW |
| Phasen | 3 |
| Spannung (V) | 380-415D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 (Protect. water jets/dust) |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 16 bar |
| Anschluss-Nenndruck | PN 16 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BAQE |
| Bruttogewicht | 1570 kg |
| Nettogewicht | 1410 kg |
| Motornummer | 83N16144 |
| EAN-Code | 5712607105211 |

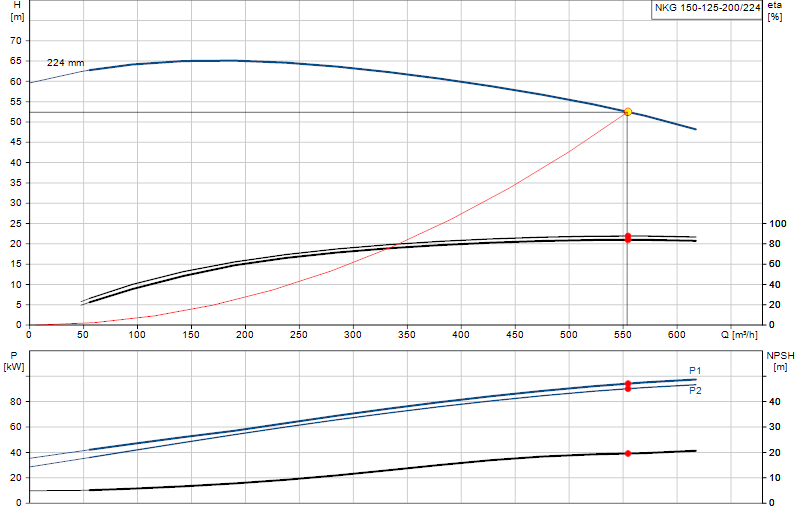

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
