Technische Daten
| Pumpentyp | NKG |
| Nennförderstrom (m³/h) | 145.5 m³/h |
| Nennförderhöhe (m) | 77.51 m |
| Mindesteffizienzindex (MEI) | 0.51 |
| Leistung P2 (kW) | 45 kW |
| Phasen | 3 |
| Spannung (V) | 380-400/660-690 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 (Protect. water jets/dust) |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 16 bar |
| Anschluss-Nenndruck | PN 16 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BQQE |
| Bruttogewicht | 694 kg |
| Nettogewicht | 585 kg |
| Motornummer | 92554936 |
| EAN-Code | 5715471334435 |

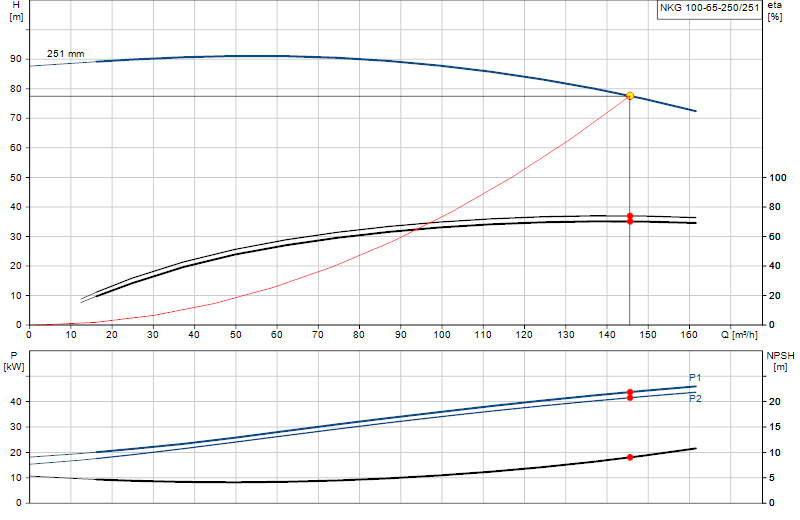

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
