Technische Daten
| Pumpentyp | NKE |
| Nennförderstrom (m³/h) | 195.9 m³/h |
| Nennförderhöhe (m) | 21.02 m |
| Leistung P2 (kW) | 15 kW |
| Phasen | 3 |
| Spannung (V) | 440-480 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 12 bar |
| Anschluss-Nenndruck | Class 125 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | BQQE |
| Bruttogewicht | 211 kg |
| Nettogewicht | 211 kg |
| Motornummer | 93507978 |
| EAN-Code | 5715468961132 |

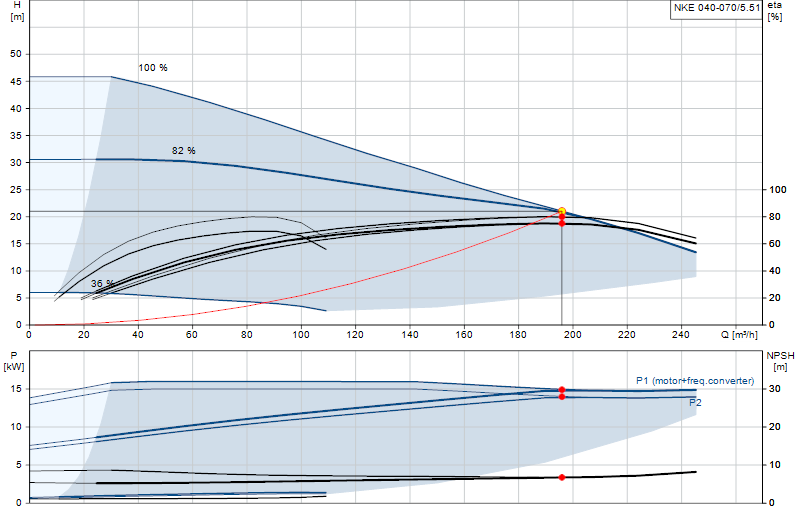

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
