Technische Daten
| Pumpentyp | NBGE |
| Nennförderstrom (m³/h) | 91.2 m³/h |
| Nennförderhöhe (m) | 74.86 m |
| Mindesteffizienzindex (MEI) | 0.67 |
| Leistung P2 (kW) | 30 kW |
| Phasen | 3 |
| Phasen | 3 |
| Spannung (V) | 380-420D/660-725Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 16 bar |
| Anschluss-Nenndruck | PN 16 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BQQE |
| Bruttogewicht | 422 kg |
| Nettogewicht | 341 kg |
| Motornummer | 92779349 |
| EAN-Code | 5715121918558 |

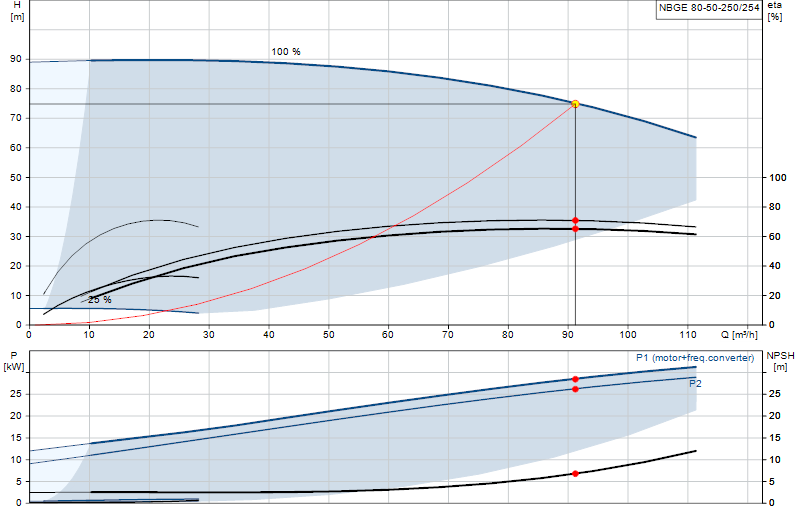

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
