Technische Daten
| Pumpentyp | NBG |
| Nennförderstrom (m³/h) | 357.2 m³/h |
| Nennförderhöhe (m) | 55.51 m |
| Mindesteffizienzindex (MEI) | 0.68 |
| Leistung P2 (kW) | 75 kW |
| Phasen | 3 |
| Phasen | 3 |
| Spannung (V) | 400-0 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 16 bar |
| Anschluss-Nenndruck | PN 16 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Cast iron |
| Wellendichtung | BQQE |
| Bruttogewicht | 679 kg |
| Nettogewicht | 620 kg |
| Motornummer | 99174347 |
| EAN-Code | 5713834517983 |

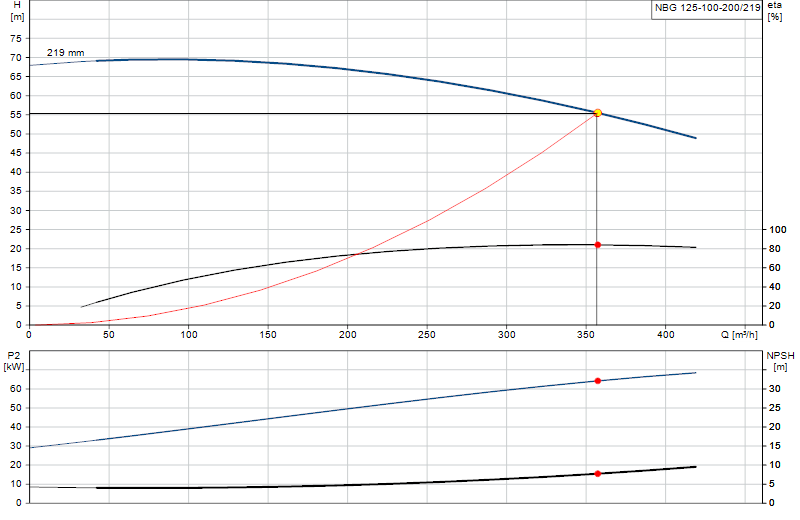

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
