Technische Daten
| Pumpentyp | NB |
| Nennförderstrom (m³/h) | 181.8 m³/h |
| Nennförderhöhe (m) | 20.52 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 15 kW |
| Phasen | 3 |
| Phasen | 3 |
| Spannung (V) | 380-415 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -25 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 16 bar |
| Anschluss-Nenndruck | PN 16 |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | BQQE |
| Bruttogewicht | 182 kg |
| Nettogewicht | 157 kg |
| Motornummer | 99174340 |
| EAN-Code | 5715469272787 |

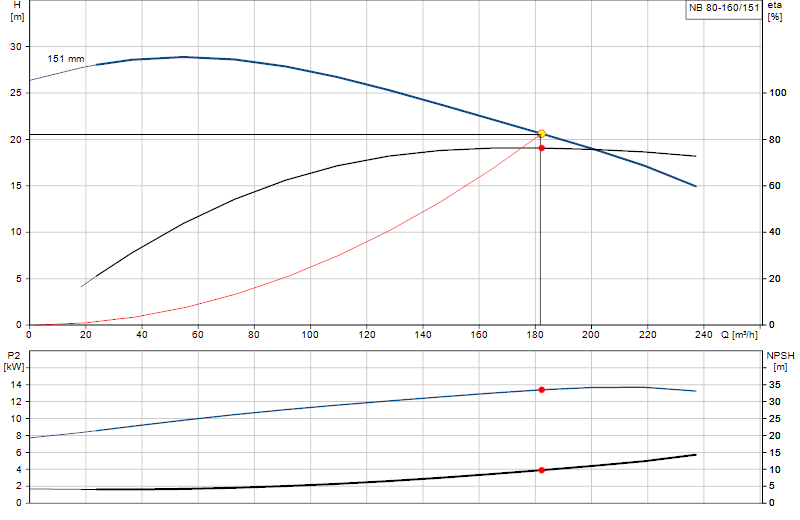

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
