Technische Daten
| Pumpentyp | MTS |
| Leistung P2 (kW) | 22 kW |
| Phasen | 3 |
| Spannung (V) | 380-415D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 80 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Wellendichtung | DQ |
| Nettogewicht | 182 kg |
| Zulassungen | CE,EAC,UKCA, |
| Motornummer | 87470021 |
| EAN-Code | 5711499883191 |

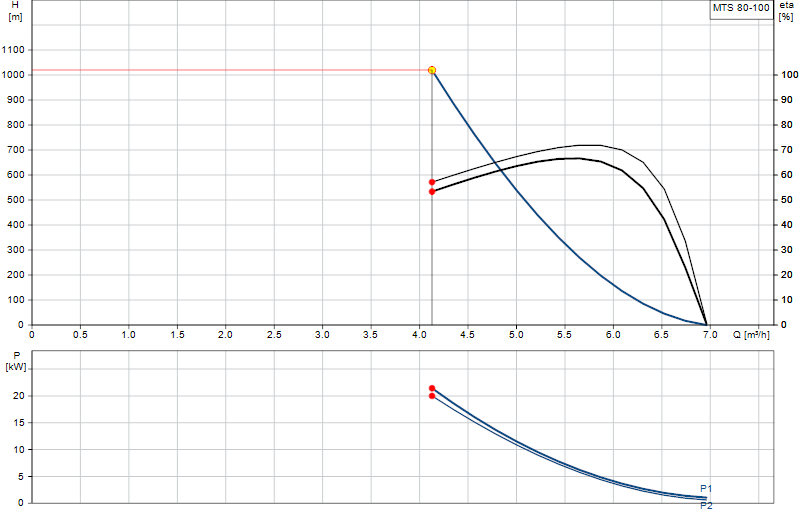

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
