Technische Daten
| Pumpentyp | MTRE |
| Nennförderstrom (m³/h) | 202 l/min |
| Nennförderhöhe (m) | 152.9 m |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 11 kW |
| Phasen | 3 |
| Spannung (V) | 200-240 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 90 °C |
| Min. Medientemp. (°C) | -10 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 30 bar |
| Rohranschluss | NPT(F) |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HUUV |
| Höhe (mm) | 45 mm |
| Bruttogewicht | 137 kg |
| Nettogewicht | 106 kg |
| Zulassungen | CE,UKCA,RCM, |
| Motornummer | 93138359 |
| EAN-Code | 5715470213335 |

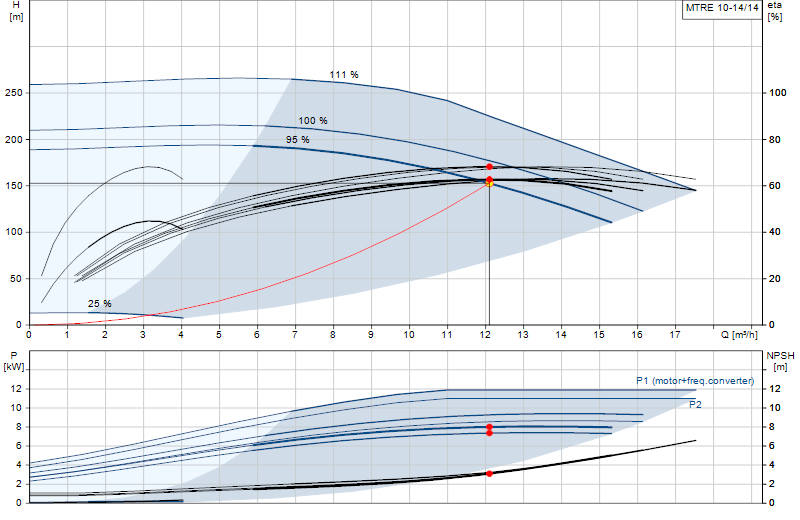

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
