Technische Daten
| Pumpentyp | MTH |
| Mindesteffizienzindex (MEI) | 0.59 |
| Phasen | 3 |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP54 |
| Isolationsklasse | F |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 90 °C |
| Min. Medientemp. (°C) | -10 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 10 bar |
| Rohranschluss | Square / Rp |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | AQQV |
| Höhe (mm) | 32 mm |
| Bruttogewicht | 34.3 kg |
| Nettogewicht | 31.6 kg |
| Zulassungen | CE,EAC,UKCA |
| EAN-Code | 5713827030505 |

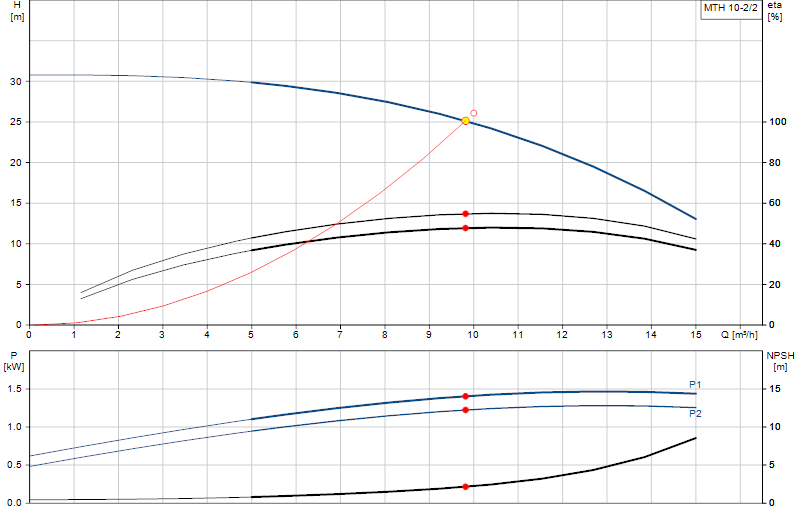

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
MTH 2, MTH 4, MTC 2, MTC 4, Model A (Service instruction)
Service · English 0,5 MB -
MTH 10, MTH 15, New pump types including replacement guide for MTH 8, 12, 16 (Data booklet)
Data booklets · English 3,6 MB -
MTR, MTRE, SPK, MTH, MTA - immersible pumps (Data booklet)
Data booklets · English 24,8 MB -
SPK, MTH, CRK - Immersible pumps
Data booklets · English 4,3 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,2 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,1 MB -
MTH, ZH, JP, KO, CN version (I & O instructions)
Installation & operating instructions · English 12,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
IMMERSIBLE PUMPS FOR INDUSTRY, MTR, MTH, MTA, MTD, MTS (Product brochure)
Product Brochures · English 5,3 MB -
Machine tool (Product brochure)
Product Brochures · English 0,7 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Refrigeration and Cooling Manual (Handbook)
Product Brochures · English 2,7 MB -
Machine tools; MTH, MTC (Service Kit Catalogue)
Service · English 0,4 MB -
MTH 8, 12, 16 (Service kit instruction)
Service · English 0,4 MB
