Technische Daten
| Nennförderstrom (m³/h) | 24.72 m³/h |
| Nennförderhöhe (m) | 4.903 m |
| Energieeffizienzindex (EEI) | 0.17 |
| Phasen | 1 |
| Nennspannung | 230 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Max. Nennstrom (A) | 2.4 A |
| Schutzart | IPX4D |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 110 °C |
| Min. Medientemp. (°C) | -10 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 6 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 6 |
| Einbaulänge (mm) | 360 mm |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Composite |
| Bruttogewicht | 29.7 kg |
| Nettogewicht | 26.9 kg |
| Zulassungen | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| EAN-Code | 5710626493821 |

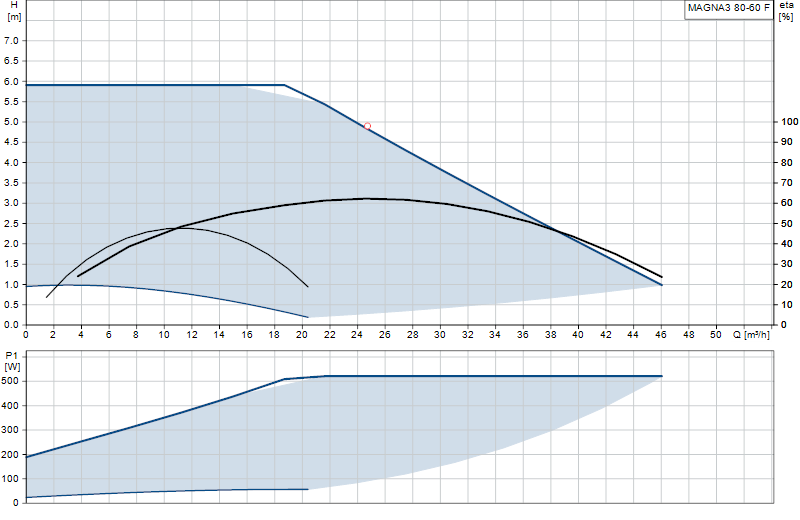

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
MAGNA3 model A, B and C, data booklet
Data booklets · English 38,9 MB -
MAGNA3 Model D, Data booklet
Data booklets · English 66,5 MB -
MAGNA3 Model E, Databooklet
Data booklets · English 43,4 MB -
MAGNA3 model A, B and C, data sheet
Data sheets · English 0,3 MB -
MAGNA3 model D, data sheet
Data sheets · English 0,3 MB -
MAGNA3 Model E (installation and operating instructions)
Installation & operating instructions · English 22,8 MB -
MAGNA3 Model E (Safety instruction)
Installation & operating instructions · English 3,7 MB -
MAGNA3 models A, B, C and D (Safety instructions)
Installation & operating instructions · English 2,5 MB -
MAGNA3, Model A, B, C (Installation and operating instructions)
Installation & operating instructions · English 9,9 MB -
MAGNA3, Model D (I & O instructions)
Installation & operating instructions · English 65,3 MB -
RPI-T2 with MAGNA3, installation and operating instructions
Installation & operating instructions · English 0,7 MB -
MAGNA3 - DISPLAY MENU OVERVIEW (GB/DE version) (Quick Guide)
Quick Guides · English 6,1 MB -
MAGNA3 display menu overview (valid from model C), quick guide
Quick Guides · English 6,0 MB -
MAGNA3 model D, Terminal connected (Quick Guide)
Quick Guides · English 5,7 MB -
MAGNA3 Model E, Display Menu Overview (GB/DE version) (Quickguide)
Quick Guides · English 5,7 MB -
MAGNA3 Model E, Plug connected (Quickguide)
Quick Guides · English 7,0 MB -
MAGNA3 Model E, Terminal connected (Quickguide)
Quick Guides · English 7,0 MB -
MAGNA3, Plug connected (Quick Guide)
Quick Guides · English 6,0 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 3,7 MB -
GRUNDFOS DISTRIBUTED PUMPING (Product brochure)
Product Brochures · English 7,2 MB -
GRUNDFOS DISTRIBUTED PUMPING, A PARADIGM SHIFT IN CHILLED WATER SYSTEMS (Product brochure)
Product Brochures · English 2,2 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
MAGNA SELECTION GUIDE (Product brochure)
Product Brochures · English 4,3 MB -
MAGNA1 or MAGNA3 ? A simple selection guide (Product brochure)
Product Brochures · English 1,2 MB -
MAGNA3, More than a pump (Product brochure)
Product Brochures · English 2,3 MB -
MAGNA3, Taking pump intelligence to the next level (Product brochure)
Product Brochures · English 0,8 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
MAGNA3 Cast Iron (Enviromental Product Declaration)
EPD · English 0,1 MB -
MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N, International (Service Kit Catalogue)
Service · English 2,4 MB -
MAGNA1, MAGNA3 - Condensation jacket for MAGNA 1 and 3 (Service kit instructions)
Service · English 2,0 MB -
MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)
Service · English 0,4 MB -
MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA3 (plug- and terminal connected versions / Cooling insulation shells (Service kit instruction)
Service · English 2,8 MB -
MAGNA3 (Plug- and terminal-connected versions / equipotential bonding wire) (Service kit instructions)
Service · English 3,9 MB -
MAGNA3 (Plug-connected versions / Pump head - clamp - O-ring) (Service kit instruction)
Service · English 2,4 MB -
MAGNA3, Cooling sensor with cable (Service kit instructions)
Service · English 3,3 MB -
MAGNA3, Plug- and terminal-connected versions / Sensor with cable (Service kit instructions)
Service · English 4,5 MB -
MAGNA3, Plug-connected versions / Control box - Front cover (Service kit instructions)
Service · English 4,0 MB -
MAGNA3, Plug-connected versions / Front cover and display (Service kit instructions)
Service · English 2,2 MB -
MAGNA3, Sensor cap, Plug and terminal connected versions (Service kit instruction)
Service · English 2,1 MB -
MAGNA3, Terminal-connected versions, Control box (Service kit instruction)
Service · English 3,1 MB
