Technische Daten
| Nennförderstrom (m³/h) | 21.88 m³/h |
| Nennförderhöhe (m) | 8.733 m |
| Energieeffizienzindex (EEI) | 0.18 |
| Phasen | 1 |
| Nennspannung | 230 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Max. Nennstrom (A) | 3.45 A |
| Schutzart | IPX4D |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 110 °C |
| Min. Medientemp. (°C) | -10 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 6/10 |
| Einbaulänge (mm) | 280 mm |
| Werkstoff Pumpengehäuse | Stainless steel |
| Laufradwerkstoff | Composite |
| Bruttogewicht | 21.7 kg |
| Nettogewicht | 19.8 kg |
| Zulassungen | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| EAN-Code | 5710626494361 |

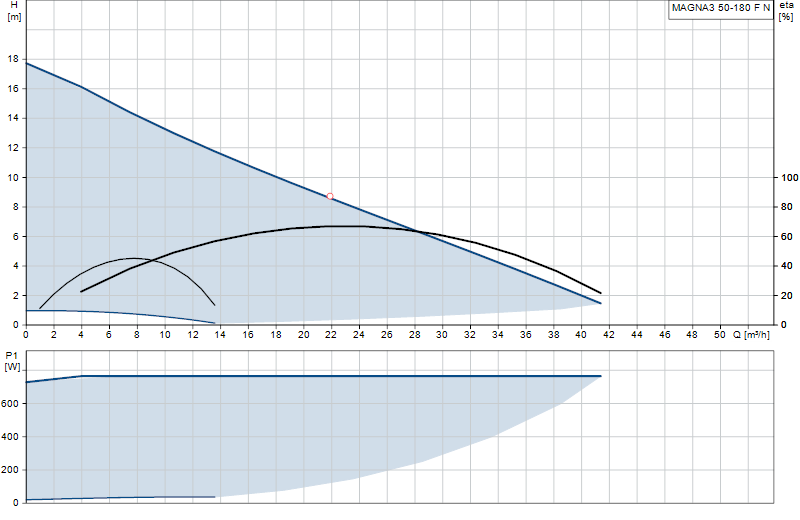

Kennlinie
