Technische Daten
| Nennförderstrom (m³/h) | 4875 m³/h |
| Nennförderhöhe (m) | 28.1 m |
| Leistung P2 (kW) | 280 kW |
| Phasen | 3 |
| Spannung (V) | 380-400D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 (Protect. water jets/dust) |
| Max. Medientemp. (°C) | 100 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Anschluss-Nenndruck | PN 10 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | ABQE |
| Bruttogewicht | 9640 kg |
| Nettogewicht | 8760 kg |
| Zulassungen | CE |
| Motornummer | 99734292 |
| EAN-Code | 5713833982546 |

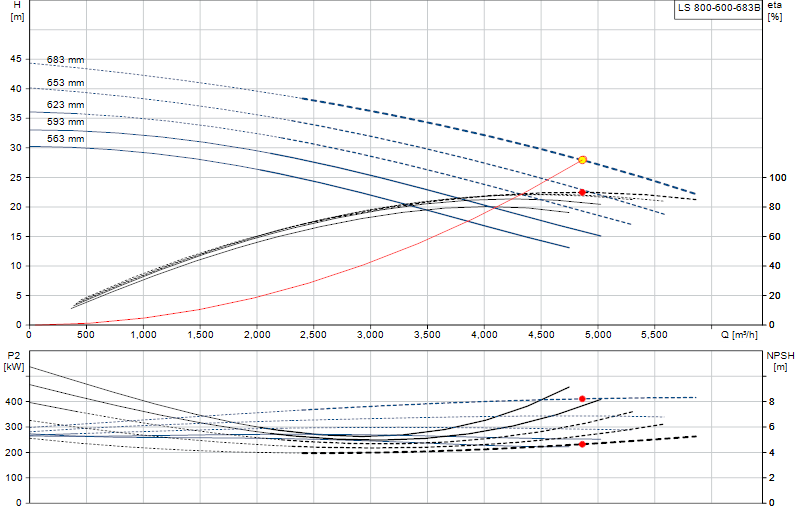

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
