Technische Daten
| Nennförderstrom (m³/h) | 586 m³/h |
| Nennförderhöhe (m) | 46.2 m |
| Leistung P2 (kW) | 55 kW |
| Phasen | 3 |
| Spannung (V) | 380-400D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 (Protect. water jets/dust) |
| Max. Medientemp. (°C) | 100 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Anschluss-Nenndruck | PN 10 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | BQQE |
| Bruttogewicht | 2580 kg |
| Nettogewicht | 2100 kg |
| Motornummer | 99547717 |
| EAN-Code | 5715473761567 |

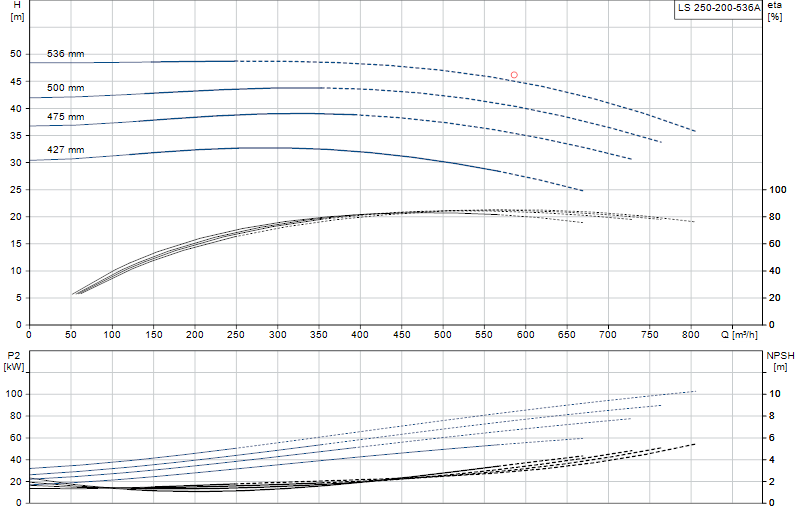

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
LS (Service instructions)
Service · English 38,6 MB -
LS, Horizontal split-case pumps (Data booklet)
Data booklets · English 8,7 MB -
LS,LSV 50Hz APAC (Data booklet)
Data booklets · English 25,2 MB -
LS,LSV 50Hz China (Data booklet)
Data booklets · English 26,2 MB -
Large LS range (I &O), made in CN
Installation & operating instructions · English 4,6 MB -
LS (Safety instructions and other important information)
Installation & operating instructions · English 1,7 MB -
LS, Long-coupled horizontal split case pump (I&O instructions) - EU,IMEA,APAC version
Installation & operating instructions · English 3,7 MB -
LSV (I &O), made in CN
Installation & operating instructions · English 1,1 MB -
Small LS range made in CN (I &O)
Installation & operating instructions · English 3,8 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
LS/LSV Split case pumps
Product Brochures · English 6,4 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
LS (Service Kit Catalogue)
Service · English 5,9 MB -
LS, LSV - CN (Service Kit Catalogue)
Service · English 4,1 MB -
LS, LSV (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,2 MB -
NK, NKE, NKG, NKGE and LS Laser alignment (Service instructions)
Service · English 12,0 MB
Varianten & alternative Codes
Gleichwertige Alternativen
Pumpen derselben hydraulischen Klasse wie 93511895 (gleichwertiger Förderstrom und Förderhöhe), im Katalog verfügbar.
