Technische Daten
| Nennförderstrom (m³/h) | 132.1 m³/h |
| Nennförderhöhe (m) | 81.56 m |
| Leistung P2 (kW) | 75 kW |
| Phasen | 3 |
| Spannung (V) | 380-420D/660-725Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Max. Medientemp. (°C) | 100 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 16 bar |
| Anschluss-Nenndruck | PN 16 |
| Laufradwerkstoff | Silicon bronze |
| Wellendichtung | BBVP |
| Bruttogewicht | 826 kg |
| Nettogewicht | 769 kg |
| Zulassungen | CE,EAC |
| Motornummer | 92910043 |
| EAN-Code | 5713829844933 |

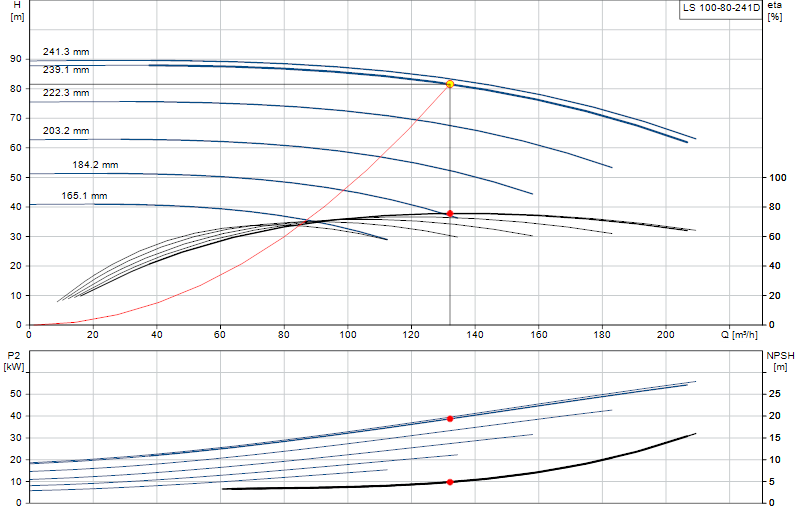

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
