Technische Daten
| Nennförderstrom (m³/h) | 3440 l/s |
| Nennförderhöhe (m) | 7.5 m |
| Max. Förderhöhe (m) | 8 m |
| Phasen | 3 |
| Spannung (V) | 400 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Stainless steel |
| Breite (mm) | 3495 mm |
| Bruttogewicht | 4950 kg |
| Nettogewicht | 4520 kg |
| Zulassungen | CE,EAC |
| EAN-Code | 5713826242558 |

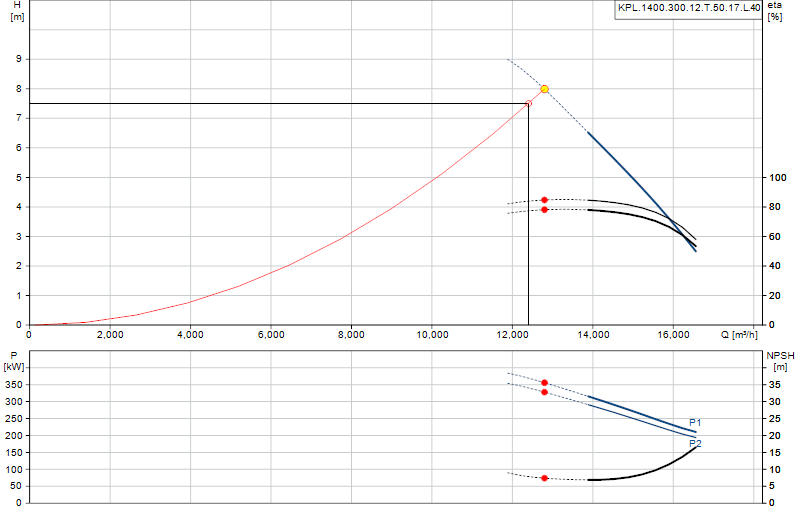

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
KPL, KWM (Service instruction)
Service · English 10,5 MB -
Oil service kit (KPL.700-1400, KWM 700-1400) (Service instruction)
Service · English 2,8 MB -
GATE PUMP PUMPING STATION (Data booklet)
Data booklets · English 1,5 MB -
KPL and KWM Pump Accessories (Data booklet)
Data booklets · English 2,9 MB -
KPL and KWM Pumps, Pump Accessories (Data booklet)
Data booklets · English 2,6 MB -
KPL, KPG and KWM (11-700 kW) (Data booklet)
Data booklets · English 18,1 MB -
Correction sheet - KPL, KPG, KWM
Installation & operating instructions · English 0,2 MB -
KPL, KPG and KWM (Safety instructions)
Installation & operating instructions · English 1,5 MB -
KPL, KPG and KWM, 11-700 kW, 50 Hz, 11-800 kW, 60 Hz, DIN (Installation and operating instructions)
Installation & operating instructions · English 2,1 MB -
Monitoring Unit GU02 (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB -
Relay Unit - GU01 (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Compact Suction Intake, Perfect solution for water intake (Product brochure)
Product Brochures · English 5,1 MB -
GRUNDFOS FMC (FLOOD MITIGATION CONTROLLER) (Product brochure)
Product Brochures · English 0,8 MB -
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS WATER UTILITY (Flood Control) (Product brochure)
Product Brochures · English 6,9 MB -
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
KPL and KWM (11-700 kW) (Product brochure)
Product Brochures · English 4,3 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
KPL, KWM (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB
Gleichwertige Alternativen
Pumpen derselben hydraulischen Klasse wie 99265685 (gleichwertiger Förderstrom und Förderhöhe), im Katalog verfügbar.
