Technische Daten
| Nennförderstrom (m³/h) | 10080 m³/h |
| Nennförderhöhe (m) | 4 m |
| Max. Förderhöhe (m) | 5.2 m |
| Phasen | 3 |
| Spannung (V) | 400 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Rohranschluss | DIN |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Stainless steel |
| Breite (mm) | 2720 mm |
| Bruttogewicht | 4670 kg |
| Nettogewicht | 4060 kg |
| Zulassungen | CE,EAC |
| EAN-Code | 5713830914564 |

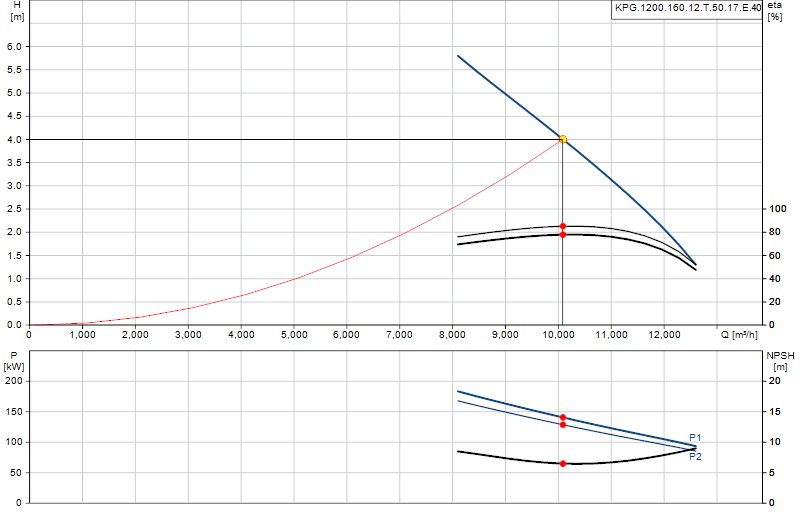

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
