Technische Daten
| Phasen | 3 |
| Spannung (V) | 380-415 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP54 |
| Max. Medientemp. (°C) | 60 °C |
| Min. Medientemp. (°C) | 5 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 10 bar |
| Bruttogewicht | 96 kg |
| Nettogewicht | 90 kg |
| EAN-Code | 5711495953539 |

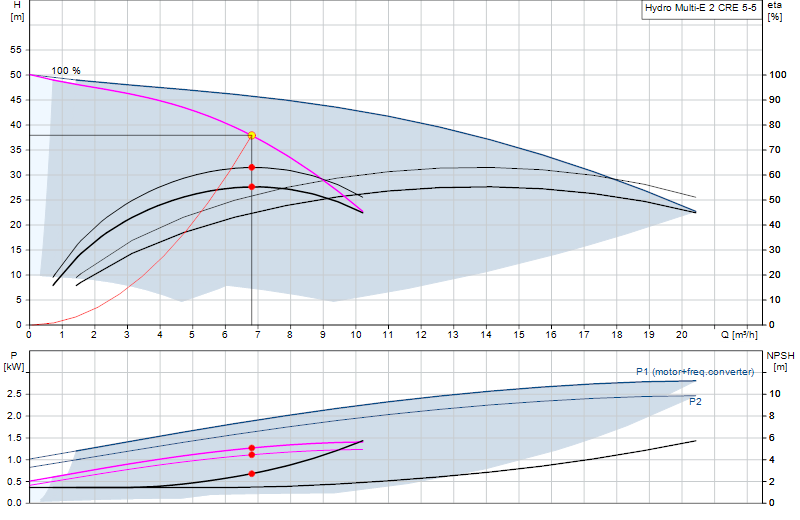

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
