Technische Daten
| Nennförderstrom (m³/h) | 126 m³/h |
| Nennförderhöhe (m) | 22 m |
| Phasen | 3 |
| Nennspannung | 380-415 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP54 |
| Max. Medientemp. (°C) | 60 °C |
| Min. Medientemp. (°C) | 5 °C |
| Bruttogewicht | 634 kg |
| Nettogewicht | 577 kg |
| EAN-Code | 5700314237516 |

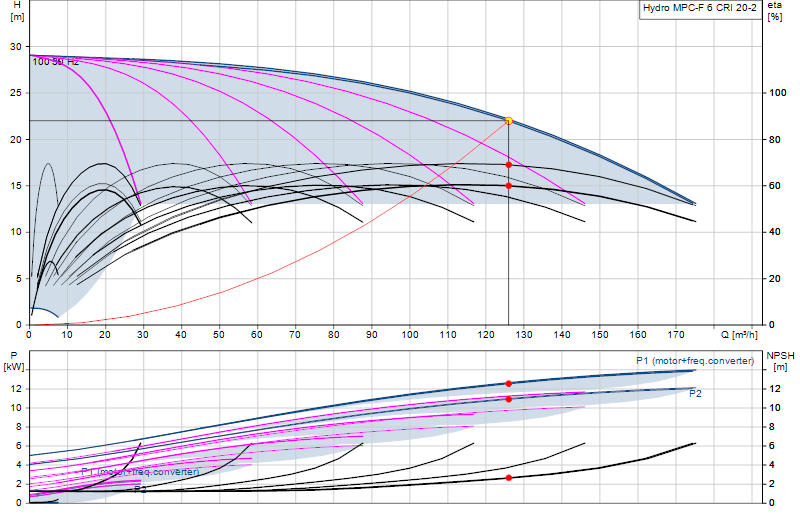

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
