Technische Daten
| Nennförderstrom (m³/h) | 77 m³/h |
| Nennförderhöhe (m) | 43 m |
| Phasen | 3 |
| Nennspannung | 380-415 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP54 |
| Max. Medientemp. (°C) | 60 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 45 °C |
| Bruttogewicht | 740 kg |
| Nettogewicht | 583 kg |
| EAN-Code | 5715123506586 |

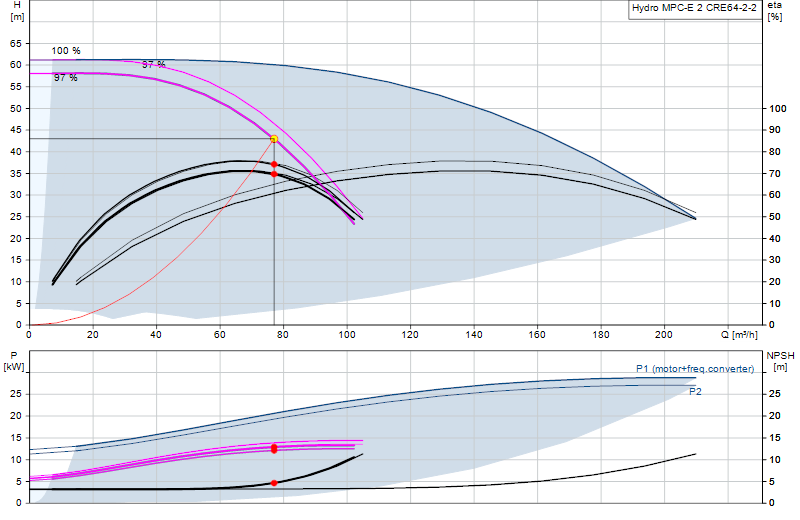

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
