Technische Daten
| Nennförderstrom (m³/h) | 67.5 l/s |
| Nennförderhöhe (m) | 44.2 m |
| Max. Förderhöhe (m) | 60.4 m |
| Phasen | 3 |
| Nennspannung | 380-415 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 5.7 bar |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | HI-Chrome |
| Bruttogewicht | 969 kg |
| Nettogewicht | 848 kg |
| EAN-Code | 5700313725427 |

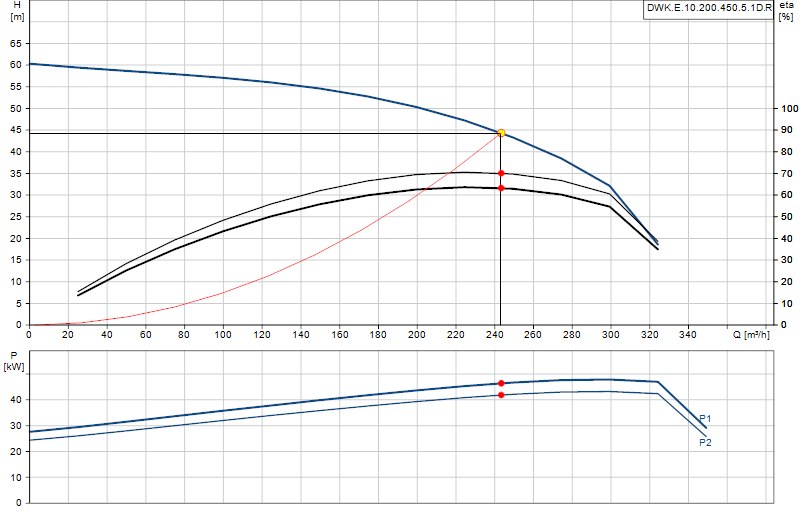

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
