Technische Daten
| Nennförderstrom (m³/h) | 13.2 l/s |
| Nennförderhöhe (m) | 23.52 m |
| Max. Förderhöhe (m) | 35 m |
| Phasen | 3 |
| Nennspannung | 380-415 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP68 |
| Isolationsklasse | F |
| Max. Medientemp. (°C) | 40 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 5.7 bar |
| Werkstoff Pumpengehäuse | Cast iron |
| Laufradwerkstoff | Ductile cast iron |
| Bruttogewicht | 124 kg |
| Nettogewicht | 106 kg |
| EAN-Code | 5700313814787 |

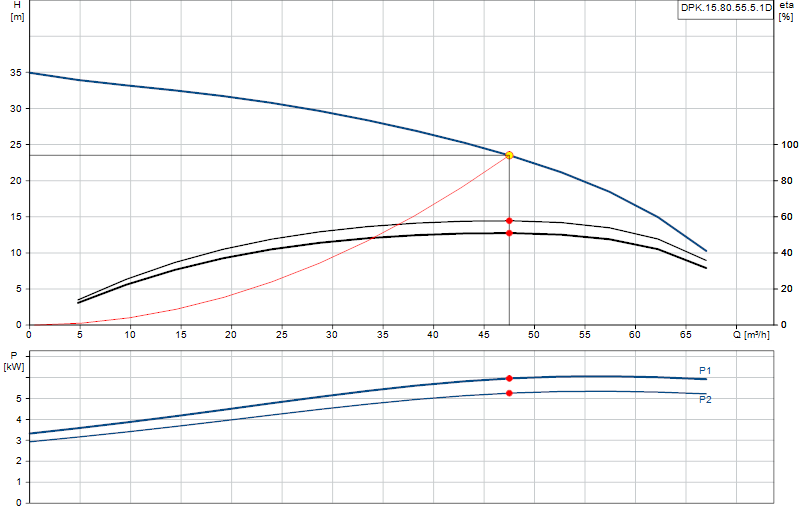

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
Dokumente und Datenblätter
-
DPK, 0.75 - 22 kW (Service instructions)
Service · English 3,0 MB -
DWK 0.75 - 90 kW, DPK 0.75 - 22 kW (Service instructions)
Service · English 3,2 MB -
DPK pumps, 0.75 - 22 kW (Data booklet)
Data booklets · English 7,0 MB -
Correction to safety instructions for Grundfos DPK and DWK (Correction sheet)
Installation & operating instructions · English 0,1 MB -
Correction to safety instructions for Grundfos DPK and DWK (Correction sheet)
Installation & operating instructions · English 0,1 MB -
DPK, DPK.V (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
DWK, DPK (Safety instructions)
Installation & operating instructions · English 1,0 MB -
Monitoring Unit GU02 (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB -
Relay Unit - GU01 (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DPK.V, Submersible sewage pumps (Product brochure)
Product Brochures · English 10,9 MB -
GRUNDFOS DPK range (Product brochure)
Product Brochures · English 1,3 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
DWK, DPK (Service Kit Catalogue)
Service · English 2,6 MB -
DWK, DPK (Service Kit Catalogue) (Recommended spare parts)
Service · English 0,1 MB
Gleichwertige Alternativen
Pumpen derselben hydraulischen Klasse wie 96926030 (gleichwertiger Förderstrom und Förderhöhe), im Katalog verfügbar.
