Technische Daten
| Pumpentyp | CRNE |
| Nennförderstrom (m³/h) | 13.91 m³/h |
| Nennförderhöhe (m) | 152.4 m |
| Max. Förderhöhe (m) | 184.7 m |
| Anzahl Stufen | 10 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 11 kW |
| Phasen | 3 |
| Spannung (V) | 380-500 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 90 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 25 bar |
| Rohranschluss | DIN / ANSI / JIS |
| Anschluss-Nenndruck | PN 25 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQV |
| Länge (mm) | 280 mm |
| Höhe (mm) | 80 mm |
| Breite (mm) | 248 mm |
| Bruttogewicht | 141 kg |
| Nettogewicht | 110 kg |
| Zulassungen | CE,UKCA,SEPRO,RCM, |
| Motornummer | 92984049 |
| EAN-Code | 5715468509273 |

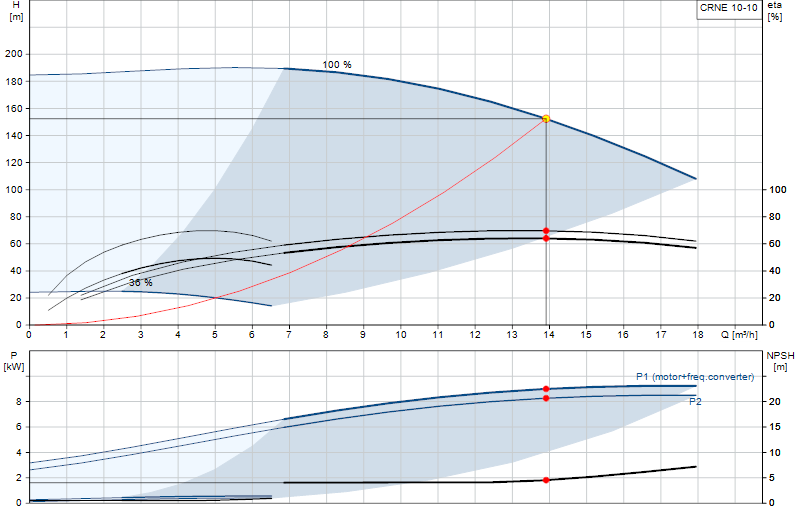

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
