Technische Daten
| Pumpentyp | CRIE |
| Nennförderstrom (m³/h) | 4.12 m³/h |
| Nennförderhöhe (m) | 84.61 m |
| Max. Förderhöhe (m) | 109.6 m |
| Anzahl Stufen | 9 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 2.2 kW |
| Phasen | 3 |
| Spannung (V) | 380-500 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 25 bar |
| Rohranschluss | DIN / ANSI / JIS |
| Anschluss-Nenndruck | PN 25 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 250 mm |
| Höhe (mm) | 75 mm |
| Breite (mm) | 210 mm |
| Bruttogewicht | 36.6 kg |
| Nettogewicht | 33.7 kg |
| Zulassungen | CE,UKCA,SEPRO,RCM, |
| Motornummer | 98190193 |
| EAN-Code | 5715468453088 |

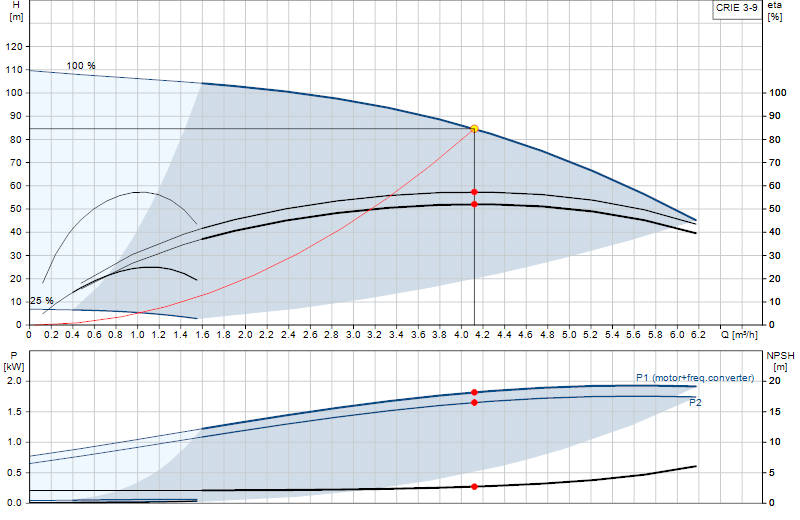

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
