Technische Daten
| Pumpentyp | CRIE |
| Nennförderstrom (m³/h) | 2.34 m³/h |
| Nennförderhöhe (m) | 168.5 m |
| Max. Förderhöhe (m) | 240 m |
| Anzahl Stufen | 21 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 2.2 kW |
| Phasen | 3 |
| Spannung (V) | 380-500 V |
| Frequenz (Hz) | 50 / 60 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 50 °C |
| Max. Betriebsdruck | 25 bar |
| Rohranschluss | FlexiClamp |
| Anschluss-Nenndruck | PN 25 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 162 mm |
| Höhe (mm) | 50 mm |
| Breite (mm) | 210 mm |
| Bruttogewicht | 40.2 kg |
| Nettogewicht | 34.5 kg |
| Zulassungen | CE,UKCA,SEPRO,RCM, |
| Motornummer | 98190193 |
| EAN-Code | 5715468449081 |

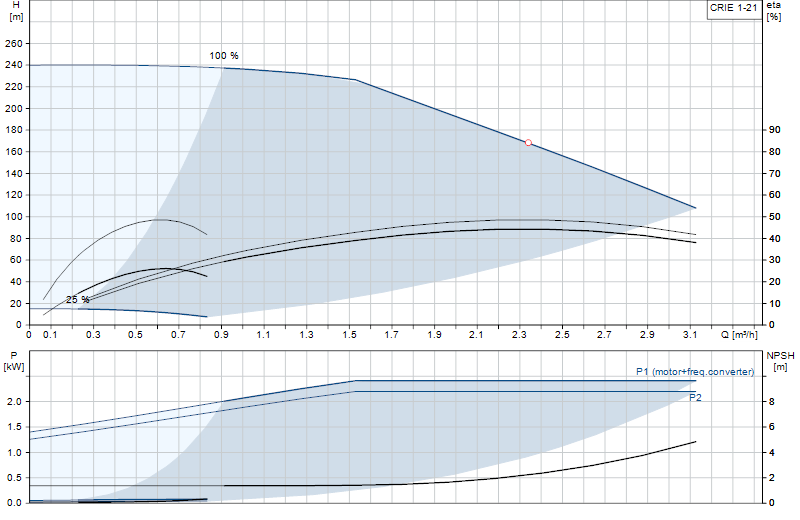

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
