Technische Daten
| Pumpentyp | CRI |
| Nennförderstrom (m³/h) | 5.8 m³/h |
| Nennförderhöhe (m) | 150.4 m |
| Max. Förderhöhe (m) | 197.5 m |
| Anzahl Stufen | 29 |
| Mindesteffizienzindex (MEI) | 0.57 |
| Leistung P2 (kW) | 4 kW |
| Phasen | 3 |
| Spannung (V) | 220-230D/380-400Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 25 bar |
| Rohranschluss | FlexiClamp |
| Anschluss-Nenndruck | PN 25 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 162 mm |
| Höhe (mm) | 50 mm |
| Breite (mm) | 210 mm |
| Bruttogewicht | 84.9 kg |
| Nettogewicht | 64.3 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO,RCM, |
| Motornummer | 93305193 |
| EAN-Code | 5715471933751 |

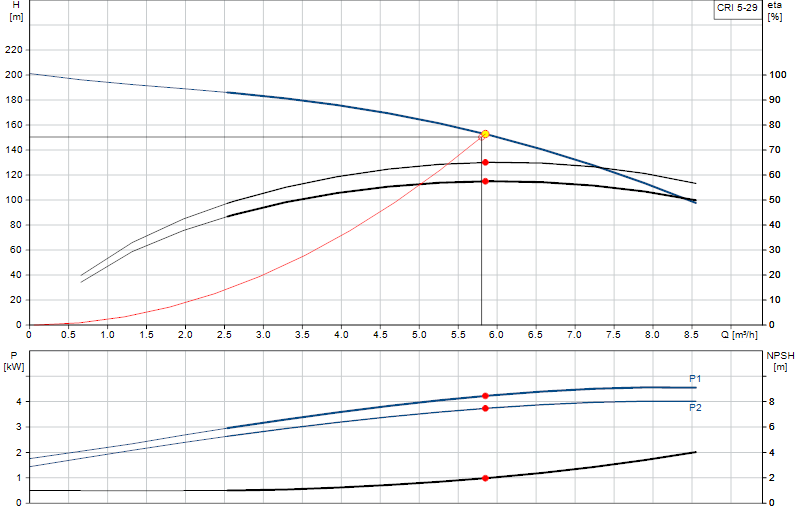

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
