Technische Daten
| Pumpentyp | CRI |
| Nennförderstrom (m³/h) | 17 m³/h |
| Nennförderhöhe (m) | 135.6 m |
| Max. Förderhöhe (m) | 169 m |
| Anzahl Stufen | 12 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 11 kW |
| Phasen | 3 |
| Spannung (V) | 380-400D/660-690Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 60 °C |
| Max. Betriebsdruck | 25 bar |
| Rohranschluss | FlexiClamp |
| Anschluss-Nenndruck | PN 25 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 202 mm |
| Höhe (mm) | 90 mm |
| Breite (mm) | 248 mm |
| Bruttogewicht | 185 kg |
| Nettogewicht | 157 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO, |
| Motornummer | 92754774 |
| EAN-Code | 5715471877390 |

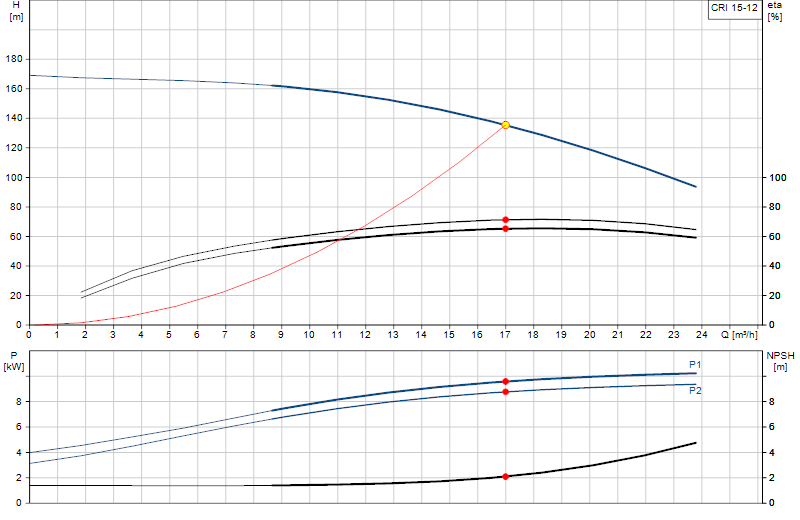

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
