Technische Daten
| Pumpentyp | CR |
| Nennförderstrom (m³/h) | 2.9 m³/h |
| Nennförderhöhe (m) | 11.2 m |
| Max. Förderhöhe (m) | 15.3 m |
| Anzahl Stufen | 9 |
| Mindesteffizienzindex (MEI) | 0.57 |
| Leistung P2 (kW) | 0.25 kW |
| Phasen | 3 |
| Spannung (V) | 220-240D/380-415Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 Dust/Jetting |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 40 °C |
| Max. Betriebsdruck | 16 bar |
| Rohranschluss | Oval / Rp |
| Anschluss-Nenndruck | PN 16 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 160 mm |
| Höhe (mm) | 50 mm |
| Breite (mm) | 220 mm |
| Bruttogewicht | 24.9 kg |
| Nettogewicht | 22 kg |
| Zulassungen | CE,EAC,UKCA,SEPRO,RCM, |
| Motornummer | 99928151 |
| EAN-Code | 5700310662923 |

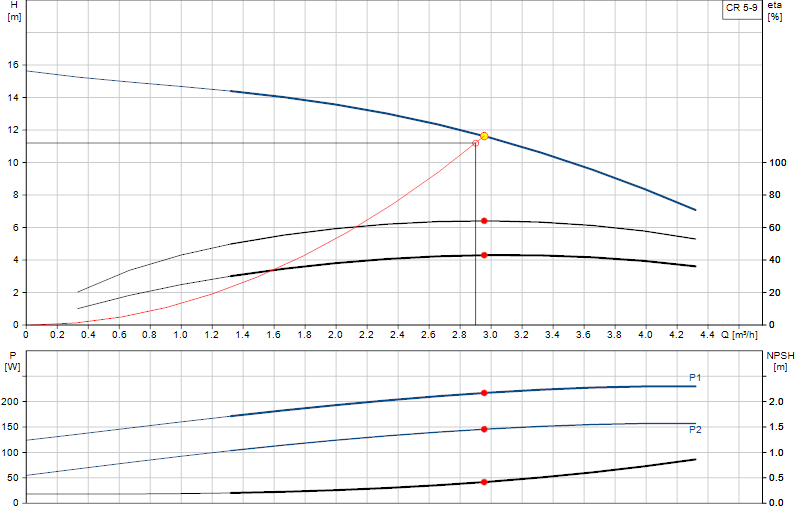

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
