Technische Daten
| Pumpentyp | CR |
| Nennförderstrom (m³/h) | 30 m³/h |
| Nennförderhöhe (m) | 196.8 m |
| Max. Förderhöhe (m) | 247.1 m |
| Anzahl Stufen | 13 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 30 kW |
| Phasen | 3 |
| Spannung (V) | 220-240D/380-420Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -30 °C |
| Max. Umgebungstemp. (°C) | 55 °C |
| Max. Betriebsdruck | 30 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 40 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 320 mm |
| Höhe (mm) | 105 mm |
| Breite (mm) | 298 mm |
| Bruttogewicht | 374 kg |
| Nettogewicht | 329 kg |
| Zulassungen | CE,EAC,UKCA |
| Motornummer | 81U05332 |
| EAN-Code | 5700396680187 |

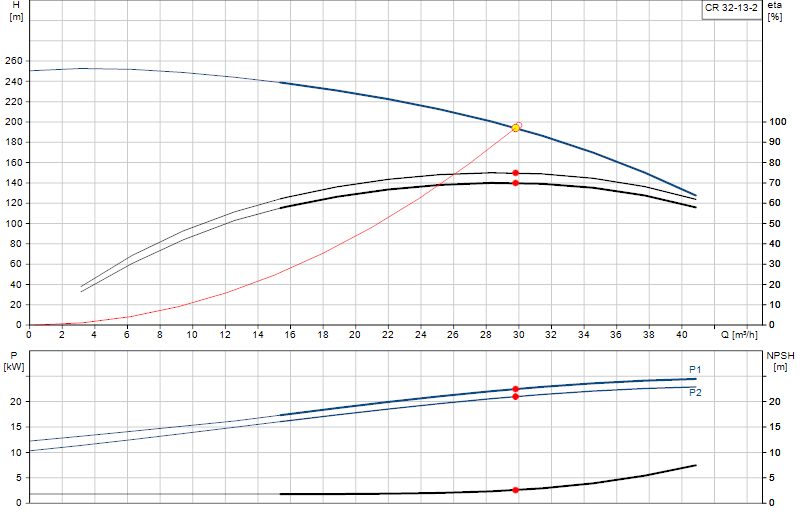

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
