Technische Daten
| Pumpentyp | CR |
| Nennförderstrom (m³/h) | 255 m³/h |
| Nennförderhöhe (m) | 163.1 m |
| Max. Förderhöhe (m) | 205.3 m |
| Anzahl Stufen | 4 |
| Mindesteffizienzindex (MEI) | 0.70 |
| Leistung P2 (kW) | 160 kW |
| Phasen | 3 |
| Spannung (V) | 380-420D/660-725Y V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Frequenzumrichter | None |
| Max. Medientemp. (°C) | 120 °C |
| Min. Medientemp. (°C) | -20 °C |
| Max. Umgebungstemp. (°C) | 55 °C |
| Max. Betriebsdruck | 25 bar |
| Rohranschluss | DIN |
| Anschluss-Nenndruck | PN 25 |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | HQQE |
| Länge (mm) | 615 mm |
| Höhe (mm) | 200 mm |
| Breite (mm) | 599 mm |
| Bruttogewicht | 1700 kg |
| Nettogewicht | 1490 kg |
| Zulassungen | CE,UKCA,SEPRO |
| Motornummer | 92898790 |
| EAN-Code | 5715121360784 |

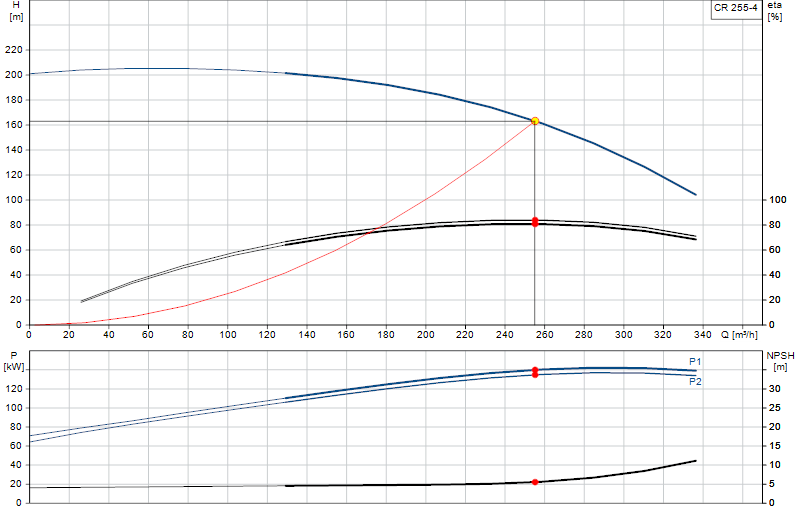

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
