Technische Daten
| Nennförderstrom (m³/h) | 4.2 m³/h |
| Nennförderhöhe (m) | 45.2 m |
| Phasen | 1 |
| Nennspannung | 200-240 V |
| Frequenz (Hz) | 50 Hz |
| Schutzart | IP55 |
| Isolationsklasse | F |
| Frequenzumrichter | Built-in |
| Max. Medientemp. (°C) | 60 °C |
| Min. Medientemp. (°C) | 0 °C |
| Max. Umgebungstemp. (°C) | 55 °C |
| Max. Betriebsdruck | 10 bar |
| Anschluss-Nenndruck | PN 10 |
| Werkstoff Pumpengehäuse | Stainless steel |
| Laufradwerkstoff | Stainless steel |
| Wellendichtung | AVBE |
| Länge (mm) | 343.9 mm |
| Höhe (mm) | 75 mm |
| Breite (mm) | 217 mm |
| Bruttogewicht | 27.3 kg |
| Nettogewicht | 16.9 kg |
| Zulassungen | CE,EAC,CN ROHS EXE,MORO,UKCA |
| EAN-Code | 5711493909330 |

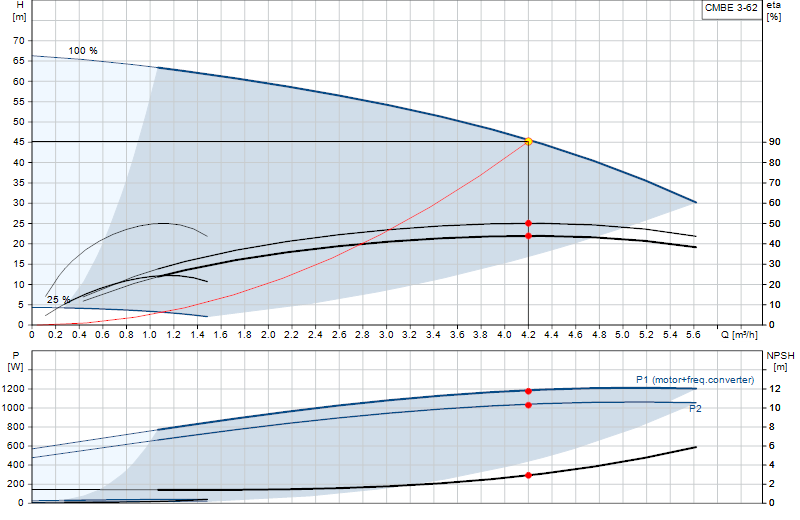

Kennlinie
Fahren Sie über die Kurve, um Förderstrom und Förderhöhe an jedem Punkt abzulesen.
